Sliding tray, model B20S

Model B20S sliding tray unit comprises a tray and carriage that move in opposite directions and comes ready for installation. The tray is mounted by insertion from above through the hole in the counter. Automatic lock at full extension in either direction. Lock can only be released by the operator behind the counter by using the lever. The unit is suitable for handing over files, documents, rolls of money and similar objects.

Material:
steel, stainless steel, plastic (tray);

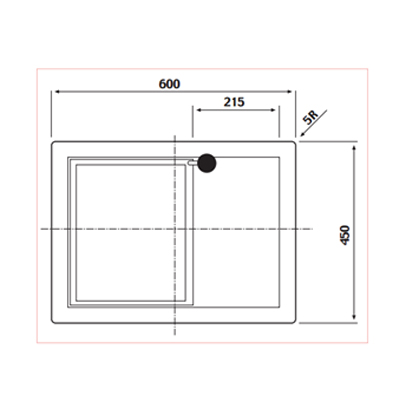

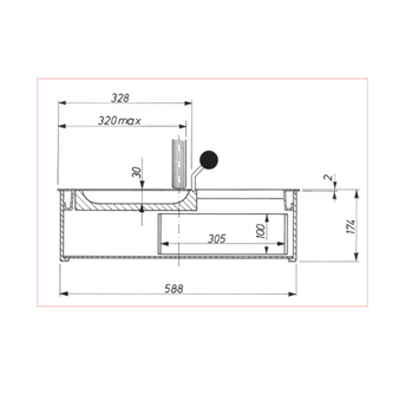

Dimensions (LxWxD), mm:
external (600x450x174);
for mounting (590x438x174);
Operational depth, mm:
tray 30,
cariage 100;
Weight, kg:
29,2
Certifications:
M3/FB4
